• High-precision timing
• Built-in battery with power-loss detection
• Low-voltage warning
• Multiple alarm functions

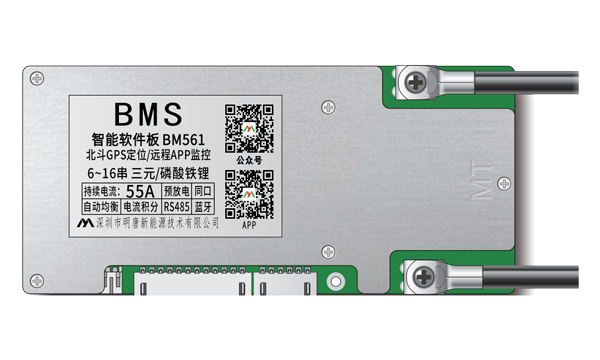

| Support Strings | 6-16S (LiFePO4 at least supports 7 strings) |
| Continuous Current | 30A/45A/55A |
| Charging Method | Same Port |
| Temperature Detection | 2 Channels |
| Balanced Approach | Passive Balancing 30-80mA |
| Self-Discharge | ≤20μA |
| Operating Current | ≤25mA |
| Communication | LTE、BT、RS485、SIF(Optional) |
| Size | 136*63*16.6mm |
| Basic Function | Special Handle/ Antenna Box Software Remote Control OTA Bluetooth Current Integration Power on Wake-up Load Detection anti-spark |
| Optional Function | SIF Buzzer Preheating Battery Level Indicator Panel |
| Application Area | Electric Two-wheeler Shared Electric Vehicle Civilian Battery Swap AGV |
