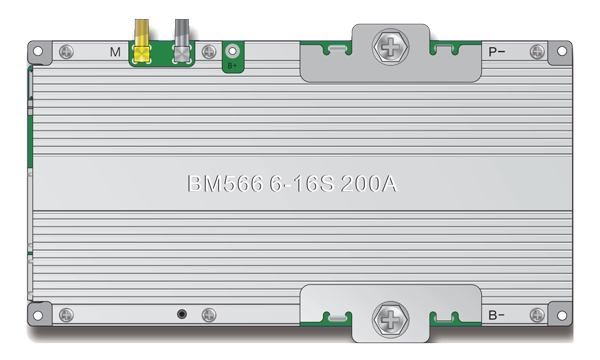

BM566
• High-precision timing
• Built-in battery with power-loss detection
• Low-voltage warning
• Multiple alarm functions
| Support Strings | 6-16S (LiFePO4 at least supports 14 strings) |
| Continuous Current | 150A/200A |
| Charging Method | Same Port |
| Temperature Detection | 4 Channels |
| Balanced Approach | Passive Balancing 100-150mA |
| Self-Discharge | ≤20μA |
| Operating Current | ≤25mA |
| Communication | LTE、BT、RS485、CAN(Optional) |
| Size | 210*110*21mm |
| Basic Function | Special Handle/ Antenna Box Software Remote Control OTA Bluetooth Current Integration Power on Wake-up Load Detection Anti-spark |
| Optional Function | CAN SIF Buzzer Preheating Battery Level Indicator Panel |
| Application Area | AGV Electric Two-wheeler Electric Tricycles Sightseeing Bus RV Energy Storage Golf Cart |
