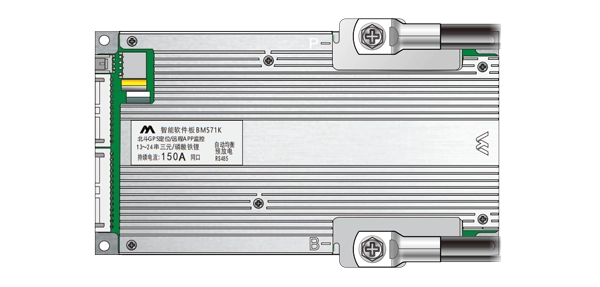

BM571K/BM571KO
• High-precision timing
• Built-in battery with power-loss detection
• Low-voltage warning
• Multiple alarm functions
• High-precision timing
• Built-in battery with power-loss detection
• Low-voltage warning
• Multiple alarm functions
Support Strings | 13-24S (LiFePO4 at least supports 14 strings, NCM supports up to 20 strings) |
Continuous Current | 120A/150A |
Charging Method | Same Port |
Temperature Detection | 4 Channels |
Balanced Approach | Passive Balancing 30-80mA |
Self-Discharge | ≤20μA |
Operating Current | ≤30mA |
Communication | LTE、BT、RS485、CAN(Optional) |
Size | 180*111*22.5mm |
Basic Function | Special Handle/ Antenna Box Software Remote Control OTA Bluetooth Current Integration Power on Wake-up Load Detection Anti-spark |
Optional Function | CAN Buzzer Preheating Battery Level Indicator Panel |
Application Area | Electric Tricycles High Speed Electric Motorcycle Low Speed Vehicle Sightseeing Bus Golf Cart |
