Battery technology is advancing rapidly across multiple industries, and one of the key components ensuring the safety, performance, and longevity of rechargeable batteries is the BMS board (Battery Management System board). In applications ranging from electric vehicles (EVs) to renewable energy storage systems, the BMS board plays a pivotal role in managing and controlling the operations of batteries, ensuring that they perform optimally and safely. A BMS board is crucial for preventing battery failures, managing power distribution, and maximizing battery life. In this article, Mingtang will explore the functions of BMS boards, highlighting how they contribute to the performance and safety of modern battery-powered systems.

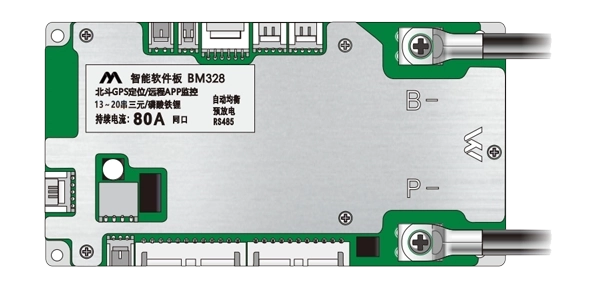

A BMS board (Battery Management System board) is a crucial piece of electronic circuitry that monitors and manages the performance of rechargeable batteries, especially in systems with multiple battery cells. The board is responsible for maintaining the battery's health, safety, and efficiency by regulating charging and discharging cycles, monitoring individual cell voltages, and balancing the battery cells to ensure they operate uniformly.
In essence, the BMS board serves as the brain of the battery, managing various functions that prevent overcharging, deep discharge, thermal runaways, and imbalanced charging. These functions are essential to ensure that batteries operate within safe and efficient parameters.
The BMS board typically integrates multiple features such as cell monitoring, temperature control, current protection, and battery balancing. These features not only improve the lifespan of the battery but also protect the device or vehicle that depends on it.
The BMS board is a highly specialized component, designed with several important functions that contribute to the overall performance and safety of a battery-powered system. The following are the primary functions that a BMS board typically performs:
Each individual cell within a battery pack operates within a specific voltage range. If the voltage of any cell falls below or exceeds this range, it could lead to permanent damage to the cell, or worse, cause a safety hazard such as fire or explosion. The BMS board continuously monitors the voltage of each cell in the battery pack to ensure that it stays within the safe operational limits. In the event of a cell exceeding its voltage limits, the BMS board will either stop the charging process or trigger an alarm to notify the system or operator. This voltage monitoring helps to protect the battery from potential damage, thus extending its lifespan and preventing safety risks.
Cell balancing is a critical function of the BMS board that ensures each battery cell within the pack charges and discharges at an equal rate. Over time, individual cells may charge at slightly different rates due to variations in manufacturing tolerances or environmental factors. As a result, some cells may become overcharged while others may be undercharged, leading to reduced overall battery performance and lifespan. The BMS board uses two primary methods for balancing: passive balancing and active balancing. Passive balancing involves dissipating excess energy from higher-charged cells as heat, while active balancing redistributes the energy from the higher-charged cells to those with lower charge levels. By ensuring that each cell maintains an equal charge level, the BMS board improves the overall efficiency and longevity of the battery pack.
Temperature management is one of the most important functions of a BMS board, as high temperatures can cause serious damage to batteries. Batteries tend to generate heat during charging and discharging cycles, and if the temperature exceeds safe levels, it can lead to thermal runaway, a dangerous situation where the battery could overheat and potentially catch fire. To prevent this, the BMS board continuously monitors the temperature of the battery pack. If the temperature exceeds a predefined threshold, the BMS board can shut down the charging or discharging process, activate cooling systems, or send an alert to the user. Temperature sensors on the BMS board provide real-time data that helps maintain the battery's temperature within safe operational ranges.
Another critical function of a BMS board is protecting the battery from excessive current, which can result in overheating, cell damage, or even fires. The BMS board continuously monitors the current flowing into and out of the battery during charging and discharging cycles. If the current exceeds the safe limit, the BMS board can interrupt the current flow, preventing damage to the battery cells. Current protection also includes preventing overcurrent conditions during charging. If the battery is being charged too quickly, the BMS board can reduce the charging rate to ensure the cells do not receive too much current. This feature helps to optimize the charging process and ensures that the battery maintains peak performance and safety.
The BMS board is responsible for estimating the State of Charge (SOC) of the battery, which refers to the amount of charge remaining in the battery relative to its full capacity. This is an essential feature for users, as it provides information about how much energy the battery has left and when it needs to be recharged. The BMS board calculates the SOC by monitoring the voltage, current, and temperature of the battery. It uses algorithms to estimate the remaining capacity, and this information can be displayed on a user interface or connected device, providing real-time updates on the battery's status.
In addition to estimating the SOC, the BMS board also monitors the State of Health (SOH) of the battery. The SOH provides insight into the battery's overall condition, including its ability to hold a charge and perform optimally. Over time, batteries naturally degrade due to factors such as cycling, temperature fluctuations, and age. The BMS board tracks the battery's performance over time and can provide early warnings if the battery's health is deteriorating. This helps users identify when a battery may need replacement or maintenance, preventing unexpected failures or performance loss.
The BMS board is an essential component of modern battery-powered systems, ensuring that batteries operate safely, efficiently, and for an extended period. From electric vehicles and renewable energy storage to consumer electronics and medical devices, the BMS board plays a critical role in optimizing battery performance and longevity. By regulating charging, balancing cells, monitoring temperature, and ensuring safety, the BMS board helps create reliable, high-performance systems that users can trust.
As battery-powered applications continue to grow and evolve, the importance of BMS boards will only increase, contributing to safer and more efficient energy storage solutions across various industries. Whether for personal devices, large-scale energy storage systems, or electric vehicles, the BMS board remains a cornerstone in the development of sustainable, high-performing battery technologies.
